Advancements in Small Square Baler Reliability
The reliability of small square balers has long been a primary concern for users and a significant challenge for manufacturers. Users often report “poor product quality,” while manufacturers point to issues of “overloading.” Both sides have valid arguments, but the core problem remains unresolved. In fact, most failures can be traced back to a single issue: timing deviation.
Statistics indicate that 80% of baler failures result from “timing deviation,” with 80% of these deviations caused by chain “tooth skipping.” When faced with high loads, tooth skipping in the main chain can lead to timing deviations, resulting in a series of chain reactions. These include the breakage of safety bolts, decreased operating efficiency, and damage to the chain.
Despite continuous upgrades to chains and the thickening of safety bolts within the baler industry, the risk of chain tooth skipping under high loads persists.
Huaxi Tech’s new generation of small square balers departs from traditional designs by placing the gearbox on the right-side panel. This change has increased the main chain wrap angle from 107 degrees to 230 degrees, resulting in more stable meshing and effectively eliminating the chain skipping problem. By solving chain skipping, the issue of timing misalignment is also addressed.
The knotting mechanism and straw feeding mechanism also utilize a dual-side independent drive system. This design means that timing deviations on one side do not impact the other, preventing the feeding system’s failure from affecting the knotting system, a common issue in traditional designs.
The gearbox is constructed with optimized materials, thickened sidewalls, and enhanced sealing to effectively eliminate the risks of main shaft oil leakage and gearbox cracking. The knotting system features the German Rasber RS6003 reinforced D-type knotter and includes an automatic lubrication device, enhancing knotting reliability. Additionally, a quick-release five-belt rope box simplifies daily maintenance.

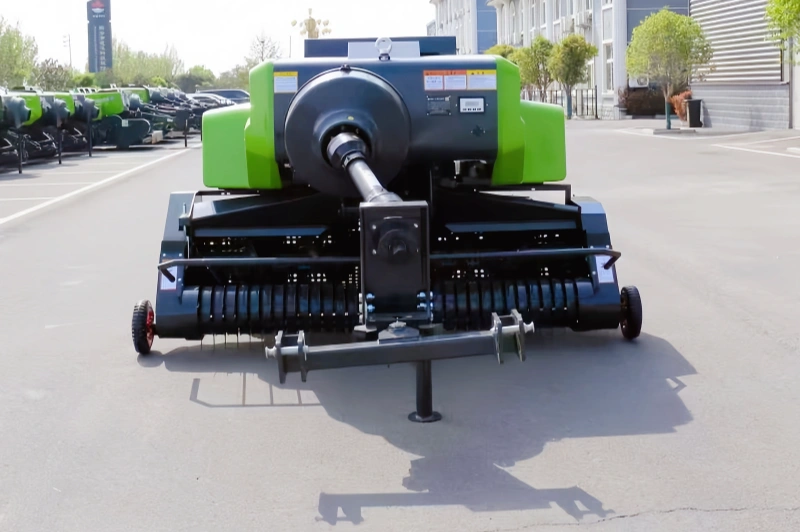

Huaxi Tech’s latest small square balers feature a right-hand drive to prevent chain skipping, a dual-sided chain breakage system for better fault isolation, and a stronger gearbox to avoid oil leaks and cracks. These upgrades ensure high reliability is a reality, not just a promise. The upgraded products for 2026 are now available on the market.
