9YF-2.2D Small Square Baler
The 9YF-2.2D features a single crushing head and can efficiently crush, remove dust, and bale crop stalks such as corn and sorghum, which can be used directly as feed for cattle and sheep.
Product Description
The 9YF-2.2D square baler is designed for binding various types of grass, rice, wheat, and other crop straws from fields. It automatically picks up cut grass and straw and compresses the scattered material into neatly shaped rectangular bales through a process that involves conveying, feeding, compressing, and tying with rope.

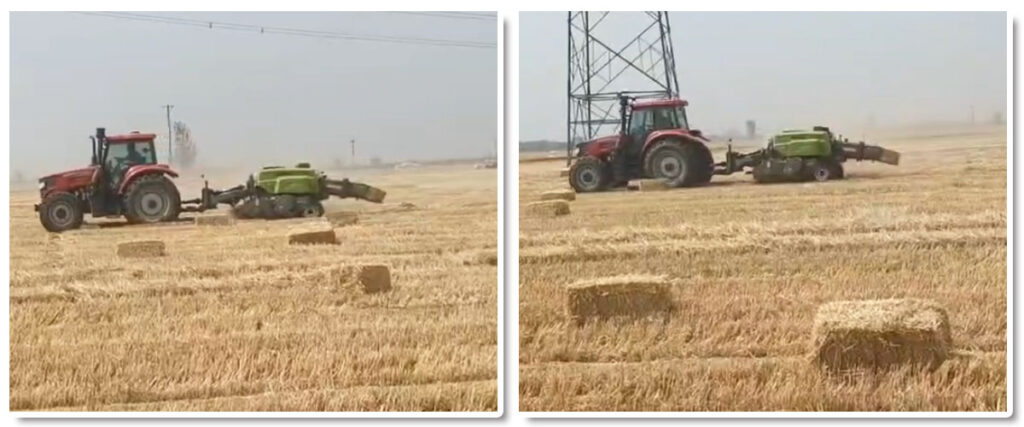

This machine is compatible with tractors that have at least 110 HP and can be operated by a single tractor driver. It is suitable for all types of grassland and farmland operations. Additionally, it can also be used for fixed operations with manual feeding or other methods.
Product Parameters
| Model | 9YF-2.2D |
|---|---|
| Overall dimension (L*W*H)(mm) | 6520*2680*1730 |
| Weight (kg) | 3140 |
| Pick up width(mm) | 2200 |
| Negative pressure fans | 2 for option |
| Number of knotters (pcs) | 2 Rasspe 6003 |
| Bale cross section dimensions (W*H)(mm) | 446*364 |
| Rope box | 5 |
| Density adjustment mode of bale density | Adjustable spring loading (hydraulic for option) |
| Bale length(mm) | 500-1350 |
| Supporting tractor (hp) | ≥110 |
| PTO speed (r/min) | 720 |
| Single-axel crusher | Hammer claw |
| Connection type with tractor | 2 point link articulated |
