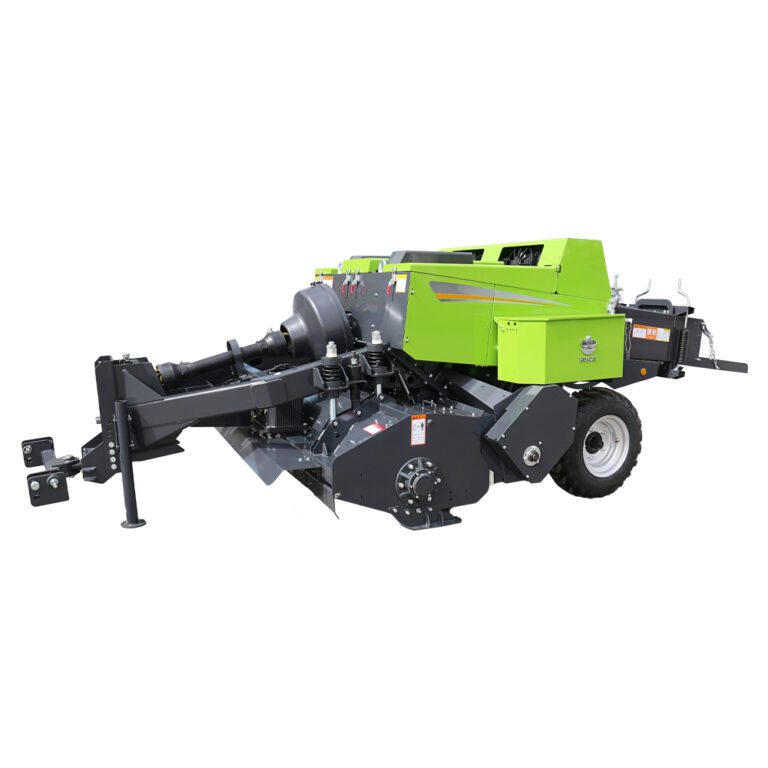

9YF-2.2A square baler is a forage bundling and harvesting machine, which is mainly used for harvesting various grasses, rice, wheat and other crop straws from the field.
It can automatically pick up the grass and straw cutted in the field, and bundle the scattered straw into rectangular bales with neat and regular shape through the operation procedures of conveying, feeding, compression forming and tying rope.
The machine matches with 33.1kw (or 36.8kw) and above wheeled tractor, and is operated by one person of tractor driver. It is suitable for all kinds of grassland and farmland operation. At the same time, it is also suitable for fixed operation by manual feeding or other methods.
| Model | 9YF-2.2A |
|---|---|
| Overall dimension (L*W*H)(mm) | 4600*2860*1750 |
| Weight (kg) | 1680 |
| Collecting width (mm) | 2200 |
| Matched power (hp) | 50 |
| Connection type with tractor | Three point linkage |
| Traction mode | Mid-mounted |
| PTO speed (r/min.） | 540 |
| Knotter number (unit） | 2 |
| Compress chamber section size (W*H)(mm) | 446*364 |
| Bale length (mm) | 500-1350 |
| Bale density | Adjustable spring loading |
| Efficiency (acre/hour) | 1.6-3.3 |
| Configuration Series | Classic Plus | Surpass Plus | Honors Plus |
|---|---|---|---|
| Protective Cover | Streamline Shape | Injection Moulding | Injection Moulding |
| Rasspe Germany High Strength D-Shape Knotter | √ | ||
| Pickup Tine | 4 Rows | 5 rows | |
| 八 Shape Pitchfork | ○ | √ | |
| Bale Damping Mechanism | Single side | Both side | |
| Increased Fan | √ | ||
| Baler Density Adjustment | Adjustable Spring | Adjustable Spring | Mechatronic Hydraulic Integration |
| Strengthened Weighting Compression Mechanism | ○ | √ | |
| Extended Compress Chamber | ○ | √ | |
| Lubrication Mechanism | Automatic Oil Lubrication | Automatic Grease Lubrication | |
| Full set bearings | High Quality Domestic Made | USA Peerbearing Maintenance Free | |
| Main Chain\Baling Mechanism Chain | 12A\10A | 16A\12A | |
| Tyre | 15-10 | 10.0/7.5-15.3 | 320/60-15.3 |
| Strengthened Traction Bracket | √ | ||
| Rope Box | 3 Rolls | 5 Rolls | 5 Rolls |
| Night Work Lights | ○ | √ | |
| Intelligent Positioning System | √ | ||
| Wireless Remote Monitoring of Work Conditions | √ | ||
| High Definition Camera and Display | ○ | √ | |
